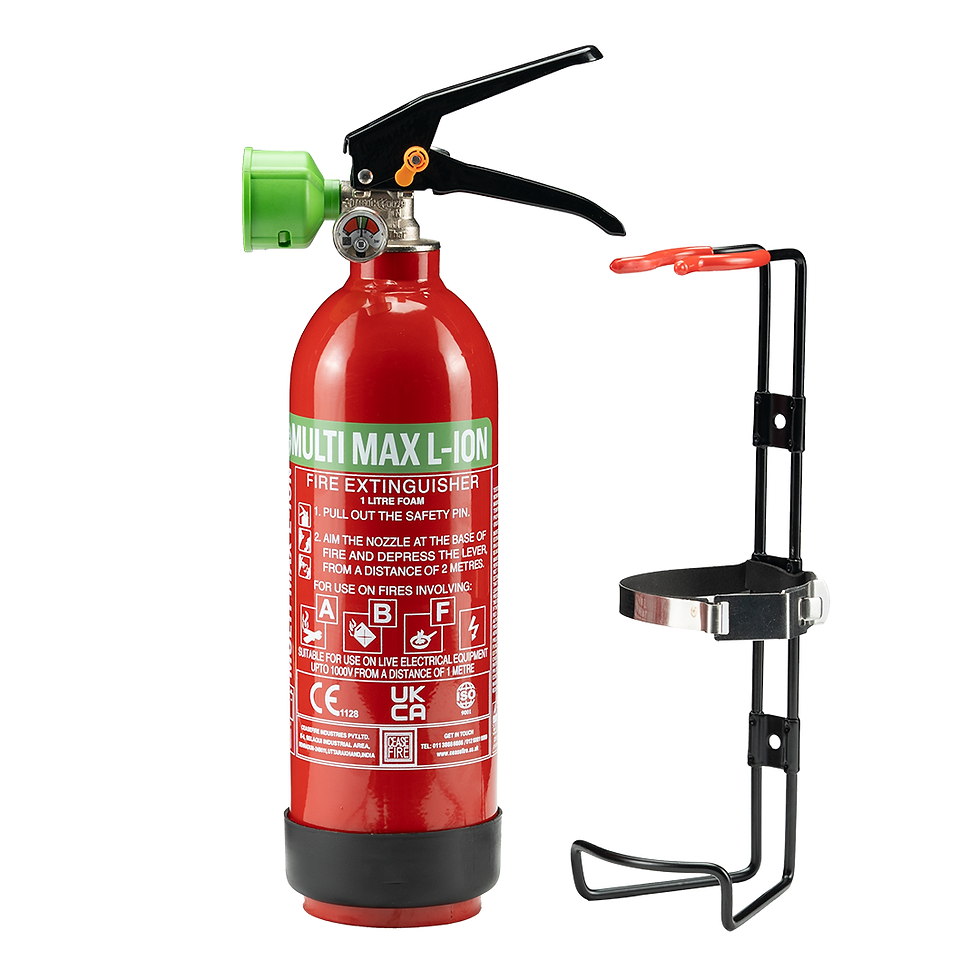

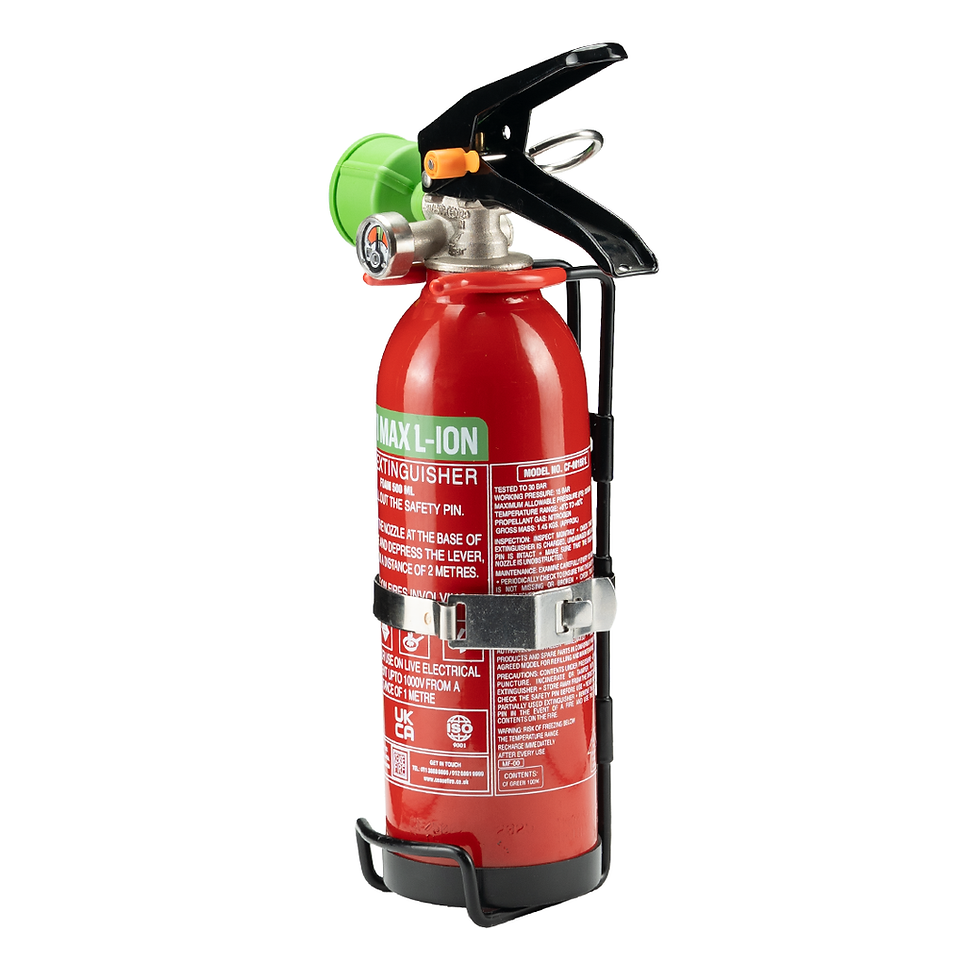

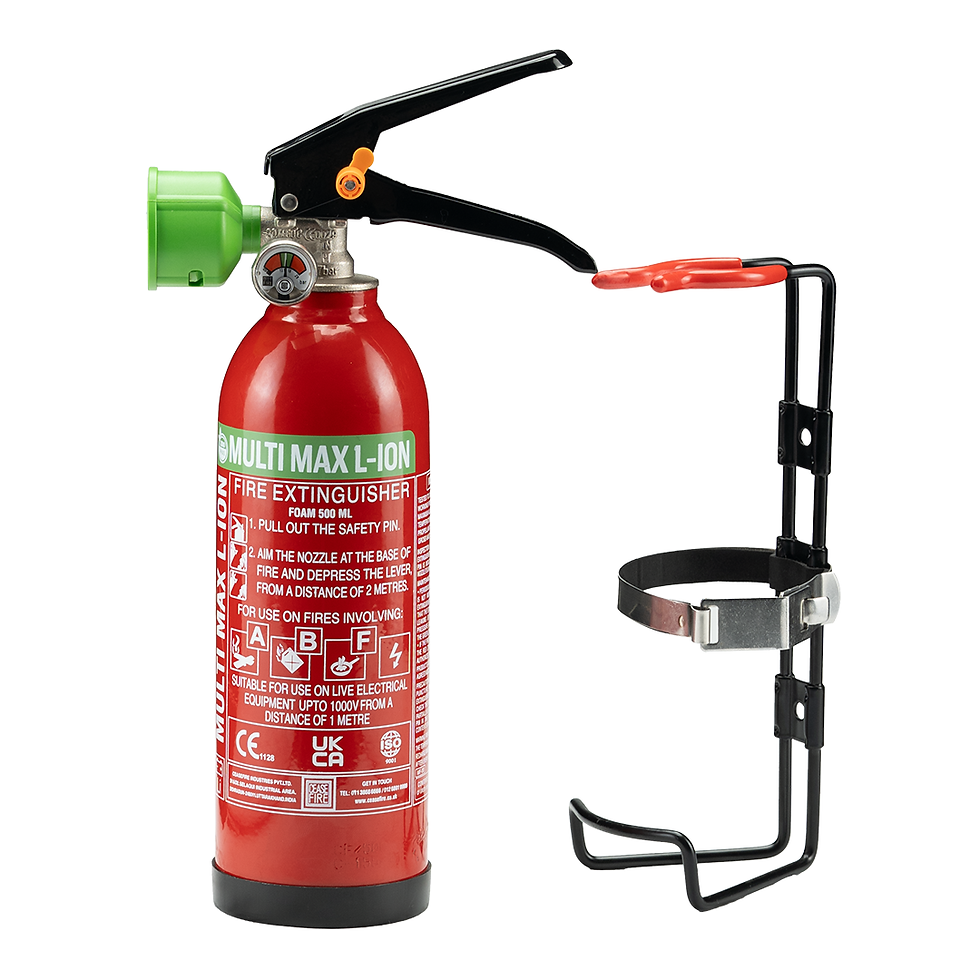

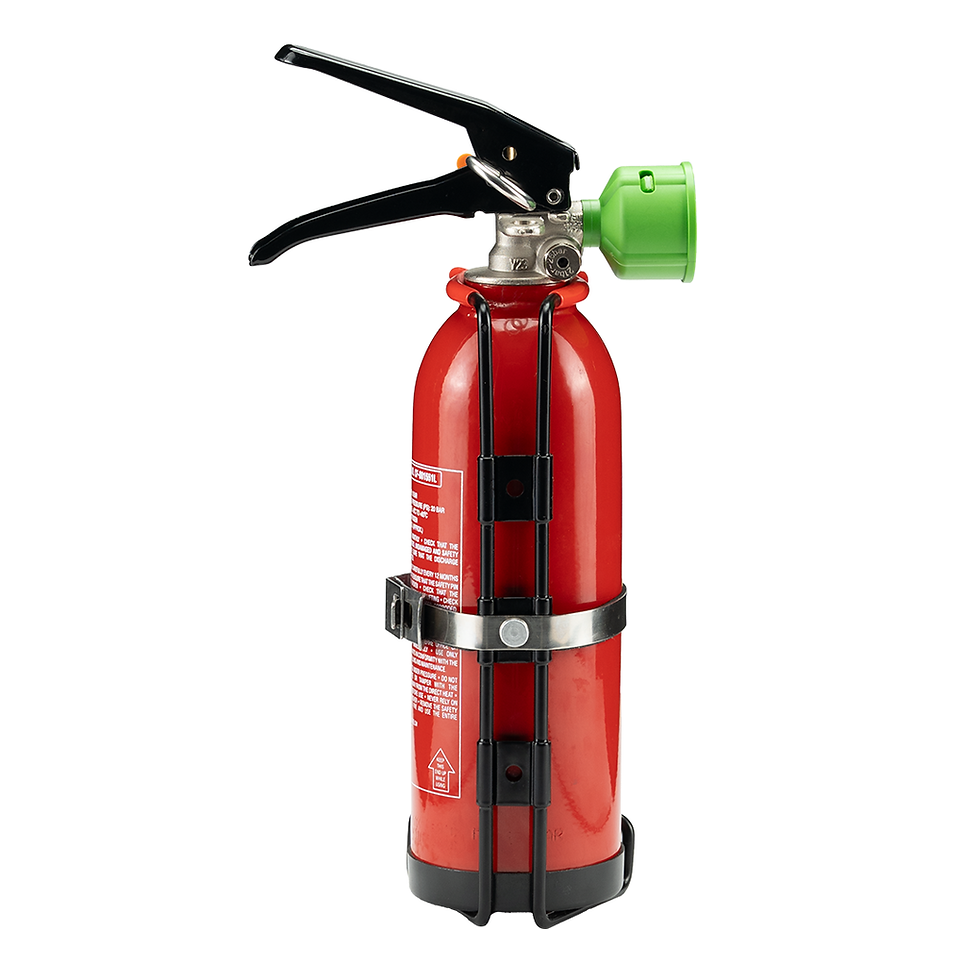

Multimax L- ion Home & Car Fire Extinguishers

ONE AGENT, LIMITLESS POSSIBILITIES.

The power of a truly versatile agent.

At the heart of MultiMax is its revolutionary firefighting agent, tested and proven to combat a wide range of fires:

Class A - Paper, fabric, furniture - common in schools, offices, and hotels

Class B - Flammable liquids in manufacturing plants, workshops, and labs.

Class C - Combustible gases, including LPG, CNG, etc.

Electrically Started Fires (ESF) - Electrically ignited fires due to short circuits in power distribution boxes, cable trays, etc

Class F - Cooking oil fires in hotel kitchens and staff cafeterias.

Lithium-ion Battery Fires - In phones, laptops, medical devices, and EV charging zones.

THE GREENEST EXTINGUISHING AGENT IN THE CATEGORY

Whether you're a green-certified hotel, a hospital with strict compliance standards, or a school focused on eco-conscious values, MultiMax helps you meet your sustainability goals while ensuring unmatched safety.

• Fluorine-free

• 100% biodegradable

• No PFAS/PFOA

• Non-corrosive

• Non-conductive

360-Degree Fire-Threat Protection

A single, high-performance agent designed to tackle fires from all common household sources — including electrical faults, burning furniture and fabrics, paper and plastics, cooking oil fires common in Indian kitchens, and even complex lithium-ion battery fires.

Electrically Safe & Non-Conductive

Non-conductive and non-damaging, it is safe for use on electrical appliances. It protects your home and property — not just lives.

Intuitive & Easy to Deploy

Its lightweight design and simple operating mechanism ensure that anyone can use it quickly and confidently during an emergency.

Globally Certified Excellence

Backed by a high BIS rating and NTA 8133 certification (for select models) for lithium battery fires, it delivers faster fire knockdown and broader coverage.

GLOSSARY	Multimax L-ion Fire Extinguisher MS SP Red -500ml	Multimax L-ion Fire Extinguisher MS SP Red -1 Ltr
Product Code	CF-001551	CF-001552
Description	Portable Fire Extinguisher, Foam Based (Fluorine Free Synthetic Foam), Stored Pressure Type, Mild Steel Body	Portable Fire Extinguisher, Foam Based (Fluorine Free Synthetic Foam), Stored Pressure Type, Mild Steel Body
Capacity of Agent	0.5	1
Max. Filling tolerance by Volume	5	5
Agent	CF Green 100%	CF Green 100%
Certification Standard	PED, (CE Marked)	PED, (CE Marked)
Diameter of Shell	77.5 mm	92 mm
Total Height (approx.)	300 mm	350 mm
MOC of Shell	Steel CR2(DC01)	Steel CR2(DC01)
Min. Wall Thickness	1.2	1
Test Pressure	35 bar	35 bar
Anti Corrosive treatment External	Outer surfaces were EP Powder coated having Thickness 50 Micron Min. Colour Red RAL 3000	Outer surfaces were EP Powder coated having Thickness 50 Micron Min. Colour Red RAL 3000
Anti Corrosive treatment Internal	Epoxy / Plastic Lining	Epoxy / Plastic Lining
Service Pressure	15 bar	15 bar
Type of Operating Mechanism	Squeeze Grip with NRV and PRV.	Squeeze Grip with NRV and PRV.
Type of Pressure Gauge	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type
Type of Dis. Fitting & Length	Nozzle (Spray Type)	Nozzle (Spray Type)
Valve	Nickle Coated Brass	Nickle Coated Brass
Valve Safety	Pressure Relief Valve	Pressure Relief Valve
Min. Effective Discharge Time (MED) (as per    EN 3-7)	4	6
Operating Temperature Range	+5 to +60°C	+5 to +60°C
Applicable to Type of Fire	Class A, B, ESF, F & Li-Battery	Class A, B, ESF, F & Li-Battery
Gross Weight (approx.)**	1.5 Kg	1.98 Kg
Product Warranty	5 Years	5 Years
