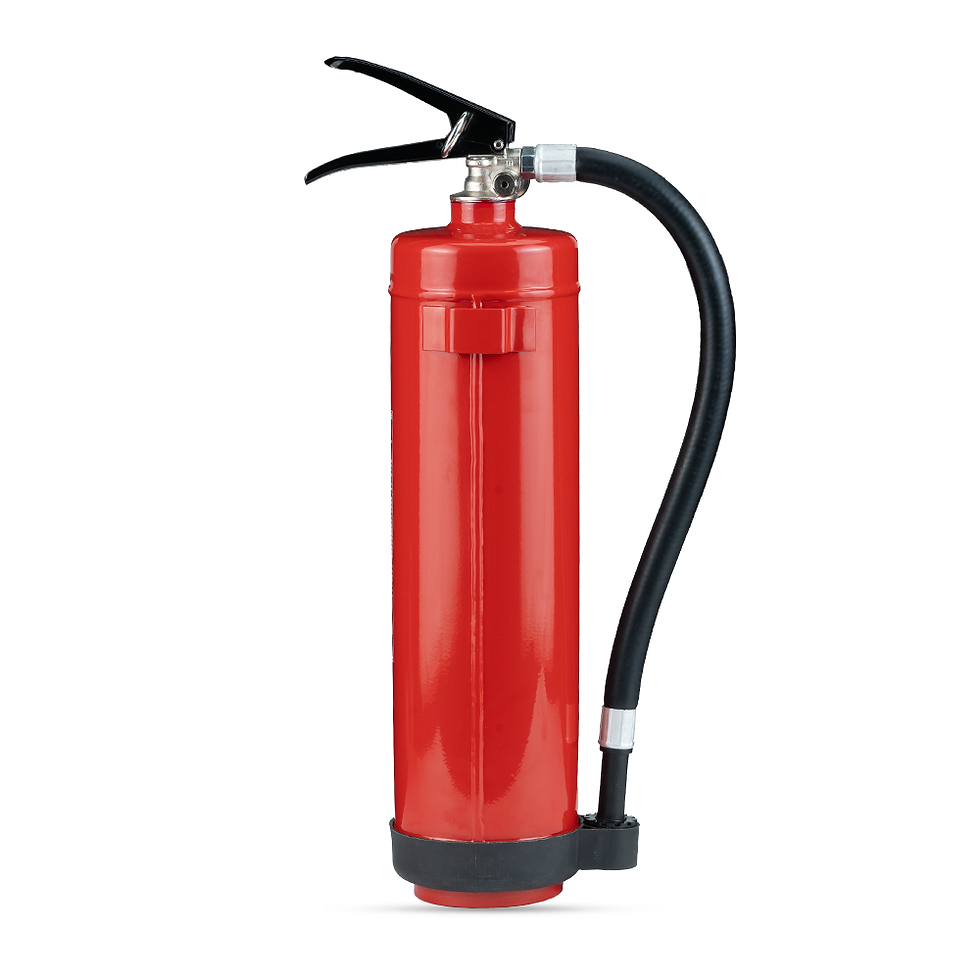

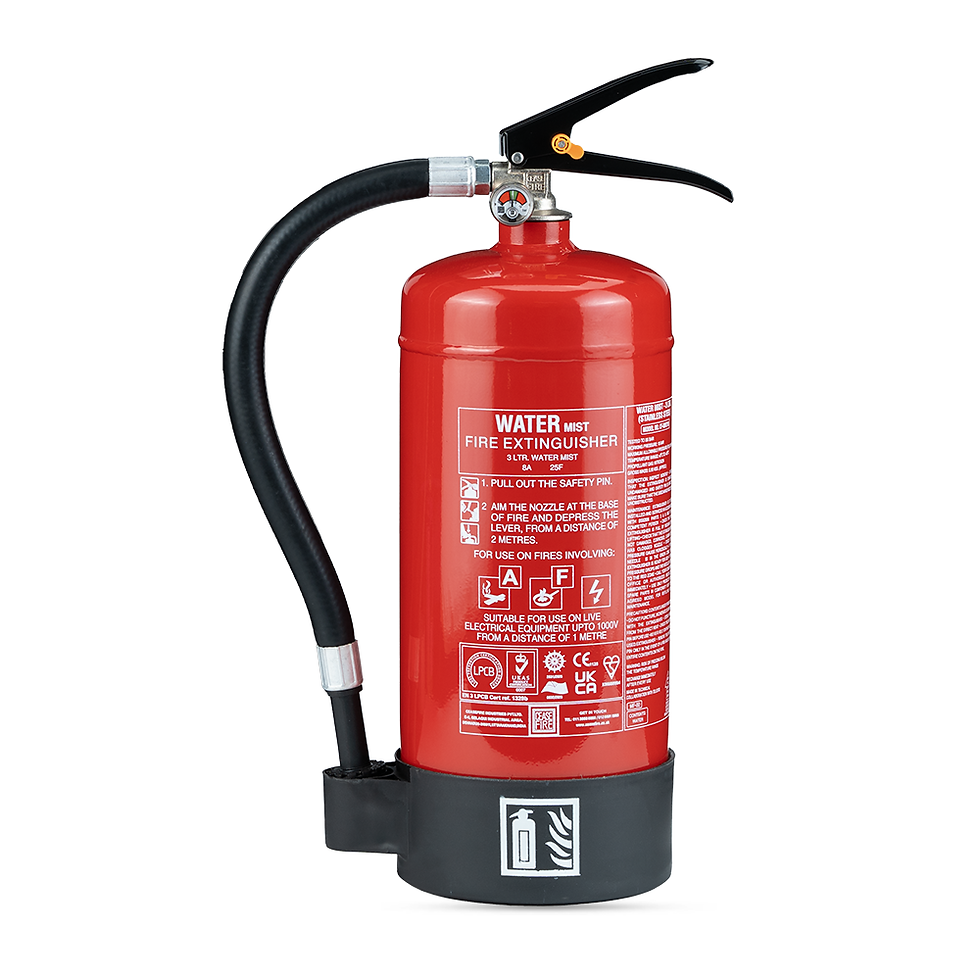

Portable Water Mist Based Extinguishers
The revolutionary new Watermist Extinguishers are designed to combat Class A, F and electrically started fires.
Specially designed rotors in the extinguisher mixes water and air in a pre-set proportion to generate a fine mist of 40-60 micron molecules. These tiny droplets have a surface area coverage many times higher than water. (The principle is simple: the smaller the particles of water, the further they spread and the faster they cool.)
The mist is then propelled through a specially designed nozzle, giving it a large throw. On coming in contact with the flames, it turns into steam and envelopes the flames, this is called the blanketing effect. Water cools the fire down to below combustion levels and cut-off the oxygen supply. Without oxygen or heat, the fire dies out, in seconds.
Because this isn’t water in its natural state, the dangers of electrocution and flooding are eliminated. Which means, this powerful, reliable, efficient extinguisher can be used on most kinds of fire, including electrically started fires.

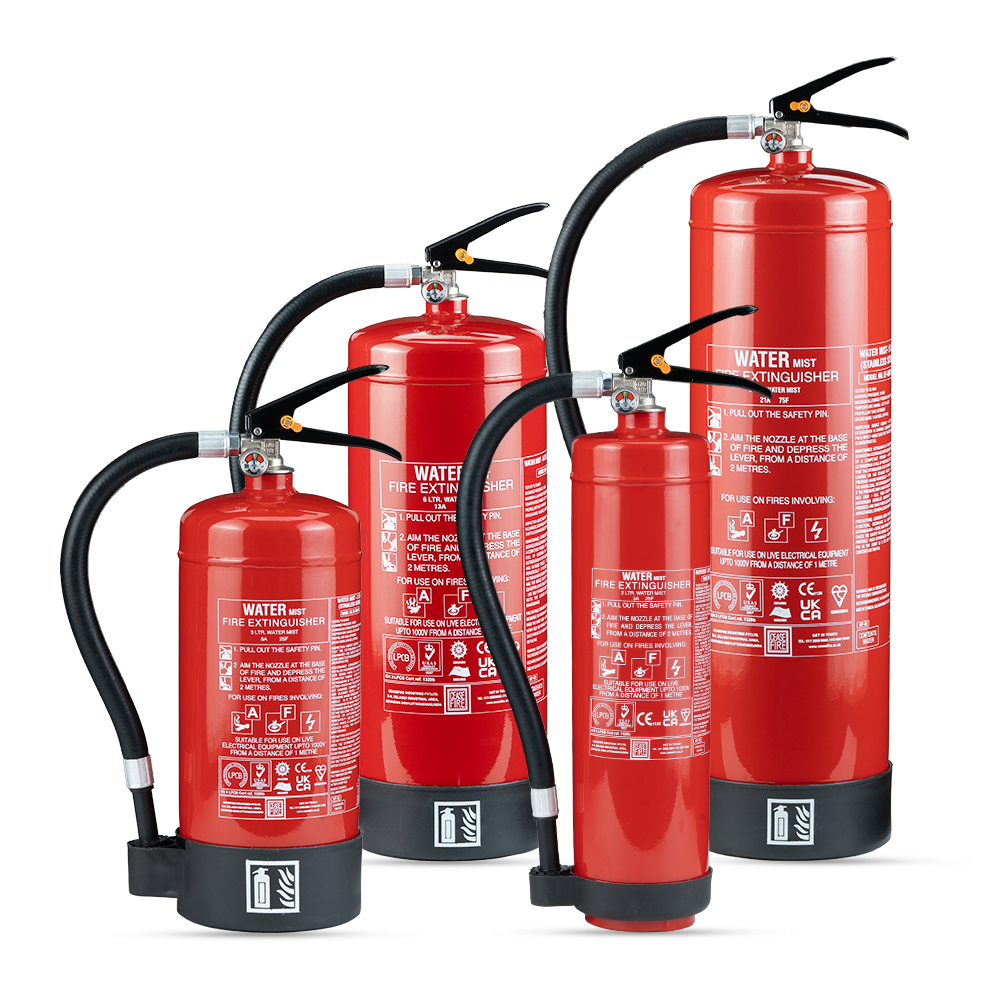

What’s more, since no synthetics or chemicals are used in the process, Watermist causes absolutely no collateral damage to your property or the environment.Ceasefire's Portable Watermist extinguishers range consists of 2 Ltrs., 3 Ltrs., 6 Ltrs., and 9 Ltrs. size variants in Stainless Steel containers.
FIRE RATINGS:
Size Ratings 2 Ltr 5A, 25F 3 Ltr 8A, 25F 6 Ltr 13A, 75F 9 Ltr 21A, 75F -
Classification: Fights fires of Class A, Class E and Class F rating
-
Water Efficient: Specially designed nozzles that convert water into a fine mist with minuscule droplets that increase the coverage of water in the fire zone.
-
Safe to use on electrical fires: Suitable for live electrical equipment up to 1000 V from a distance of 1 meter.
-
Solid stainless steel body: Its solid stainless steel body can withstand high temperatures
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring.
-
Reduces damage: Uses filtered water, eliminating collateral damage
-
Environment friendly: The use of distilled water in combination with cutting-edge technology ensures this extinguisher has no negative impact on the environment
-
Certification: LPCB, BSI Kitemark, PED, EU MED, and UKCA-MER certified.
-
GLOSSARY FIRE EXT WATER MIST 2L SS SP RED FIRE EXT WATER MIST 3L SS SP RED FIRE EXT WATER MIST 6L SS SP RED FIRE EXT WATER MIST 9L SS SP RED PRODUCT CODE CF-000709A CF-000710A CF-000711A CF-000712A AGENT CATEGORY WATERMIST WATERMIST WATERMIST WATERMIST AGENT WATER WATER WATER WATER STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT, LPCB,BSI EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL CERTIFICATION TYPE PED,EN3 PED,EN3, EU MED PED,EN3, EU MED PED,EN3, EU MED LPCB MARKING YES YES YES YES KITEMARK MARKING YES YES YES YES CE MARKING YES YES YES YES WHEEL / EU MED MARKING NO YES YES YES UKCA- MER NO YES YES YES THROW 3 METERS 3 METERS 3 METERS 3 METERS GROSS WEIGHT (APPROX) 4.50KG 5.90KG 10.60KG 14.60KG NET MASS 1.90 TO 2.00 LTR 3LTR 5.70 TO 6.00 LTR 8.55 TO 9.00 LTR DISCHARGE MECHANISM SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, F & ELECTRICAL STARTED FIRE A, F & ELECTRICAL STARTED FIRE A, F & ELECTRICAL STARTED FIRE A, F & ELECTRICAL STARTED FIRE FIRE RATINGS 5A 8A 13A 21A 25F 25F 75F 75F EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES YES WARRANTY IN YEARS 5 5 5 5 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR 35 BAR DIA. OF SHELL (OD) 108 MM 140 MM 175 MM 175 MM BODY THICKNESS (APPROX) 1.5 MM 1.5 MM 1.5 MM 1.5 MM CYLINDER MATERIAL SPEC. SS 304 (1.4301) SS 304 (1.4301) SS 304 (1.4301) SS 304 (1.4301) OPERATING TEMPERATURE 5 O C TO 60O C 5 O C TO 60O C 5 O C TO 60O C 5 O C TO 60O C SCHRAEDER VALVE YES YES YES YES PRESSURE RELIEF VALVE YES YES YES YES *Specifications can change without notice due to our continuous R&D and product improvisation initiatives.
