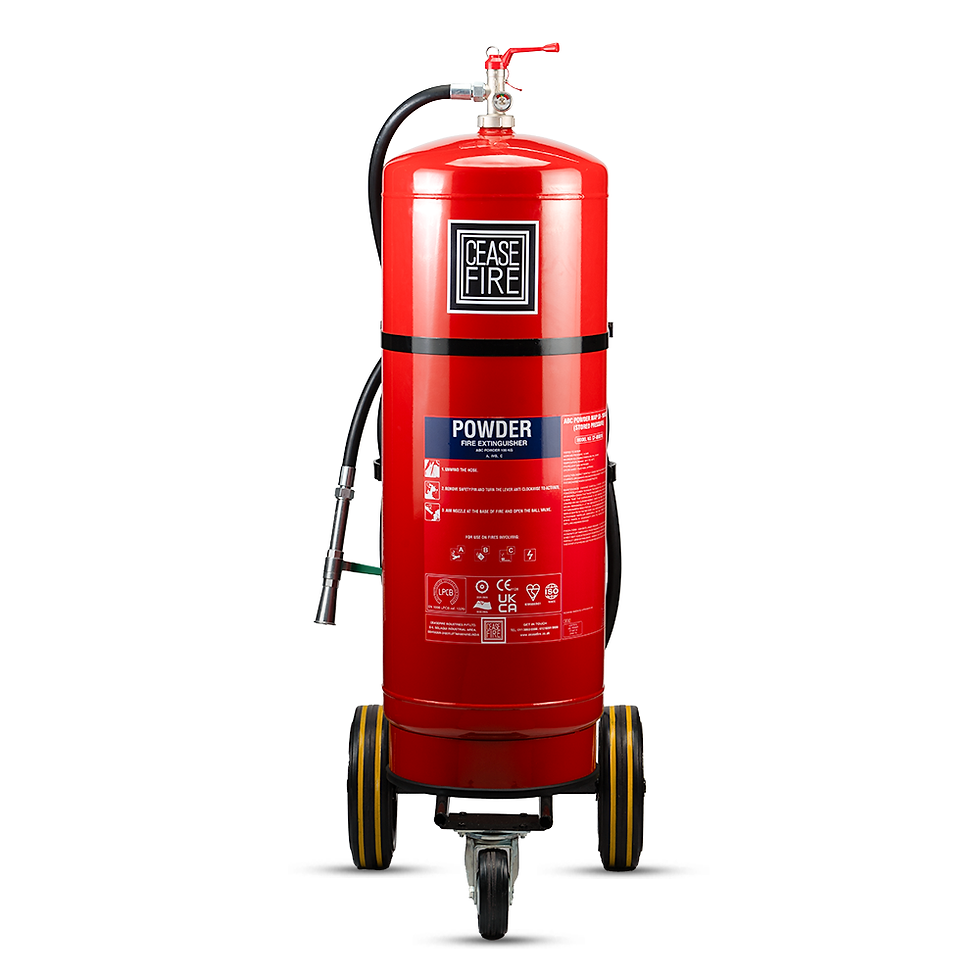

ABC Powder Based Extinguishers (Trolley Mounted) Stored Pressure Type
Ceasefire ABC powder Wheeled extinguishers are one-of-a-kind, plus-sized extinguishers that are highly mobile and quick to activate due to its trolley mounted design and stored pressure technology. These are literally mini fire engines that can protect the entire premises with ease.
Unlike most large sized trolley-based extinguishers that take time to activate, this revolutionary product is designed to engaged at the simple turn of a valve. Powered by Mono Ammonium Phosphate – MAP 50, the Ceasefire ABC Powder Wheeled extinguishers can instantly battle A, B, C as well as electrically started fires.
The Ceasefire ABC powder Wheeled extinguishers are built to take on large fires quickly and easily. These MAP 50 powered systems are available in 25 kg, 50 kg and 100 kg variants, ensuring that there’s enough firefighting power to take on the flames and extinguish them completely.
These revolutionary stored pressure systems are so easy to use, they require practically no training at all. This means that the first person at the scene of the fire can take firefighting into their own hands. Propped on wheels, these extinguishers can easily be rushed to the scene of the fire without wasting any time.FIRE RATINGS:
Size Ratings 25 Kg A, IVB 50 Kg A, IVB 100 Kg A, IVB -
Classification: Fights Class A, B, C, and electrically started fires.
-
Manoeuvrablity: Highly Manoeuvrable Trolley Mounted design.
-
Agent Potency: Packed with 50% MAP concentration.
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring.
-
External coating: External Epoxy Polyester Powder Coating for longevity.
-
Highly Reliable: Quick, powerful and reliable firefighting system.
-
5-year Warranty: 5-year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: LPCB, BSI Kitemark, PED, EU MED, and UKCA-MER certified.
-
GLOSSARY FIRE EXT MAP50 25KG MS SP RED FIRE EXT MAP50 50KG MS SP RED FIRE EXT MAP50 100KG MS SP RED PRODUCT CODE CF-000808 CF-000809 CF-000810 AGENT MAP50 MAP50 MAP50 AGENT CATEGORY ABC POWDER ABC POWDER ABC POWDER THROW 6 METERS 8 METERS 10 METERS CERTIFICATION OR VERIFING BODY LPCB,BSI, EUROCERT,BRE GLOBAL LPCB,BSI, EUROCERT,BRE GLOBAL LPCB,BSI, EUROCERT,BRE GLOBAL CERTIFICATION TYPE EN1866, PED,EU MED EN1866, PED,EU MED EN1866, PED,EU MED LPCB MARKING YES YES YES KITEMARK MARKING YES YES YES CE MARKING YES YES YES EU MED/WHEEL MARKING YES YES YES UKCA- MER YES YES YES GROSS WEIGHT (APPROX) 62.00 TO 64.00 KG 110.00 TO 113.00 KG 178.5 KG NET CONTENTS 24.50 TO 25.50 KG 49.00 TO 51.00 KG 98.00 TO 102.00 KG HEIGHT OF FIRE EXT. (APPROX) 990 MM 1200 MM 1495 MM DISCHARGE MECHANISM OPERATING LEVER (BALL VALVE) OPERATING LEVER (BALL VALVE) OPERATING LEVER (BALL VALVE) APPLICABLE ON FIRES CLASS A, B, C, & ELECTRICAL STARTED FIRE CLASS A, B, C, & ELECTRICAL STARTED FIRE CLASS A, B, C, & ELECTRICAL STARTED FIRE FIRERATINGS A, IVB A, IVB A, IVB CAN CONSTRUCTION DRAWN ROLLED AND MIG WELDED DRAWN ROLLED AND MIG WELDED DRAWN ROLLED AND MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER COATING EPOXY POLYESTER POWDER COATING EPOXY POLYESTER POWDER COATING WARRANTY IN YEARS 5 5 5 G.A. DRAWING NUMBER CF/SP-25LB-C50/GA/03 CF/SP-50LB-C50/GA/03 CF/SP-100-C50/GA/03 WORKING PRESSURE 15BAR 15BAR 15BAR DIA. OF SHELL (OD) 300.0 MM 400.0 MM 400 MM OPERATING TEMPERATURE -30°C TO +60°C -30°C TO +60°C -30°C TO +60°C HYDROSTATIC TEST PRESSURE 30BAR 30BAR 30 BAR CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL HR3(DD13) STEEL HR3 (DD13) BODY THICKNESS (APPROX) 3.0 MM 3.5 MM 3.5 MM *Specifications can change without notice due to our continuous R&D and product improvisation initiatives.
