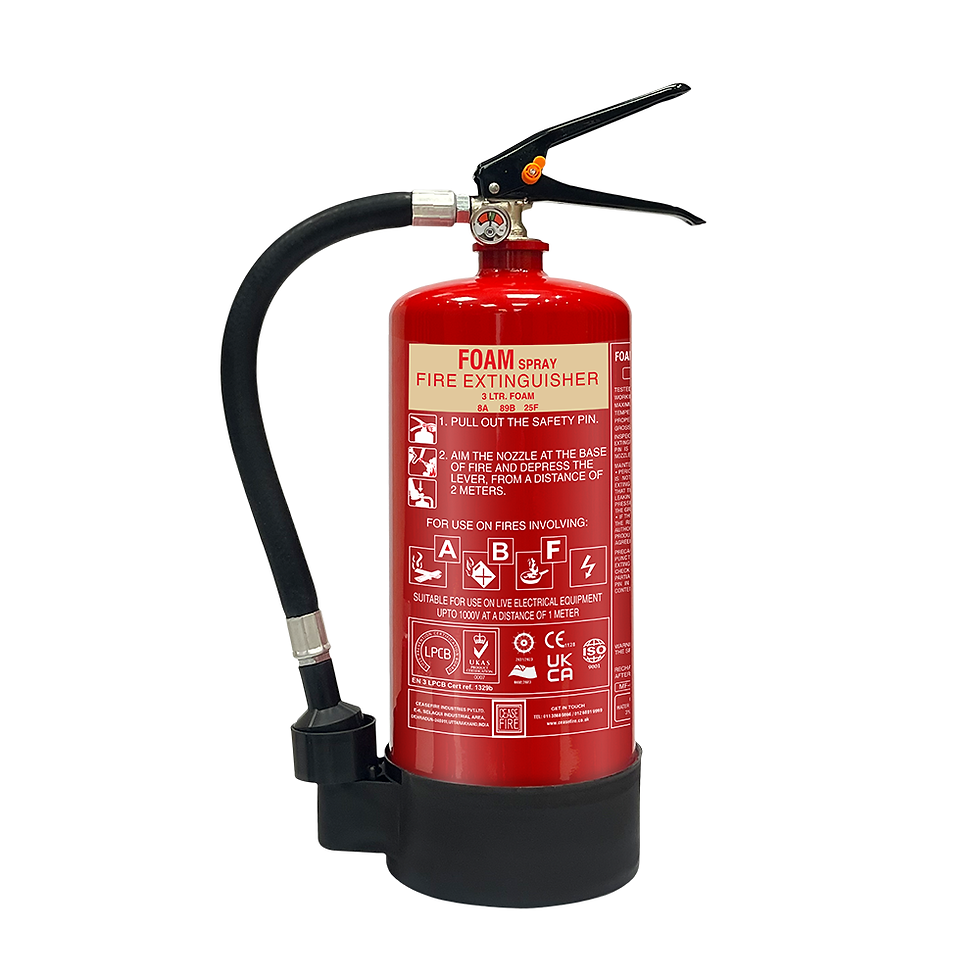

Foam Based Portable Fire Extinguishers (Spray Model)

• Classification: Fights class A & B  Fires.



• Container Construction: Deep Drawn cylinder construction.



• Convenient handle: Squeeze Grip mechanism for quick and easy use.



• Special safety valves: Equipped with Schraeder Valve and Pressure Relief Valve.



• Safe to use on electrical fires: Suitable for use on live electrical equipment up to 1000 V from a distance of 1 meter.



• Certification: LPCB, BSI Kitemark, PED, MED, and UKCA-MED certified.

NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER	FIRE EXT FOAM 3L SS SP RED (SPRAY MODEL)	FIRE EXT FOAM 3L MS SP RED (SPRAY MODEL)	FIRE EXT FOAM 6L SS SP RED (SPRAY MODEL)	FIRE EXT FOAM 6L MS SP RED (SPRAY MODEL)	FIRE EXT FOAM 9L SS SP RED (SPRAY MODEL)	FIRE EXT FOAM 9L MS SP RED (SPRAY MODEL)
PRODUCT CODE	CF-000779SA	CF-000805SA	CF-000715SA	CF-000806SA	CF-000716SA	CF-000807SA
AGENT CATEGORY	AFFF	AFFF	AFFF	AFFF	AFFF	AFFF
AGENT	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6
STORED PRESSURE / CARTRIDGE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE
CERTIFICATION OR VERIFING BODY	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL
CERTIFICATION	BS EN3 - LPCB BS EN3 - KITEMARK EU-MED UKCA-MER PED UKCA-PED	BS EN3 - LPCB BS EN3 - KITEMARK EU-MED UKCA-MER PED UKCA-PED	BS EN3 - LPCB BS EN3 - KITEMARK EU-MED UKCA-MER PED UKCA-PED	BS EN3 - LPCB BS EN3 - KITEMARK EU-MED UKCA-MER PED UKCA-PED	BS EN3 - LPCB BS EN3 - KITEMARK EU-MED UKCA-MER PED UKCA-PED	BS EN3 - LPCB BS EN3 - KITEMARK EU-MED UKCA-MER PED UKCA-PED
LPCB	YES	YES	YES	YES	YES	YES
KITEMARK**	YES	YES	YES	YES	YES	YES
EU- MED	YES	YES	YES	YES	YES	YES
UKCA- MER	YES	YES	YES	YES	YES	YES
PED	YES	YES	YES	YES	YES	YES
UKCA-PED	YES	YES	YES	YES	YES	YES
THROW	5 METERS	5 METERS	5 METERS	5 METERS	6 METERS	6 METERS
GROSS WEIGHT (APPROX)	5.70 KG	5.75 KG	9.40 TO 9.73 KG	9.40 TO 9.73 KG	13.05 TO 13.95 KG	14.70 TO 15.15 KG
NET MASS	2.85 TO 3.00 LTR	2.85 TO 3.00 LTR	5.70 TO 6.00 LTR	5.70 TO 6.00 LTR	8.55 TO 9.00 LTR	8.55 TO 9.00 LTR
DISCHARGE MECHANISM	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP
APPLICABLE ON FIRES	A, B, F & ELECTRICAL STARTED FIRE	A, B, F & ELECTRICAL STARTED FIRE	A, B, F & ELECTRICAL STARTED FIRE	A, B, F & ELECTRICAL STARTED FIRE	A, B, F & ELECTRICAL STARTED FIRE	A, B, F & ELECTRICAL STARTED FIRE
FIRE RATINGS	8A, 89B, 25F	8A, 89B, 25F	13A, 144B, 40F	13A, 144B, 40F	21A, 233B, 75F	21A, 233B, 75F
EXTERNAL COATING	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER
HELIUM LEAK DETECTION TESTING	YES	YES	YES	YES	YES	YES
WARRANTY IN YEARS	5	5	5	5	5	5
WORKING PRESSURE	15 BAR	15 BAR	15 BAR	15 BAR	15 BAR	15 BAR
HYDROSTATIC TEST PRESSURE	35 BAR	35 BAR	35 BAR	35 BAR	35 BAR	35 BAR
DIA. OF SHELL (OD)	140 MM	140 MM	160 MM	160 MM	175 MM	175 MM
BODY THICKNESS (APPROX)	1.5 MM	1.6 MM	1.5 MM	1.6 MM	1.5 MM	2.0 MM
CYLINDER MATERIAL SPEC.	SS 304 (1.4301)	STEEL CR2(DC01)	SS 304 (1.4301)	STEEL CR2(DC01)	SS 304 (1.4301)	STEEL CR2(DC01)
OPERATING TEMPERATURE	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C
SCHRAEDER VALVE	YES	YES	YES	YES	YES	YES
PRESSURE RELIEF VALVE	YES	YES	YES	YES	YES	YES



*Available with additional hanging bracket.

**Certification in process. Kindly check before ordering
