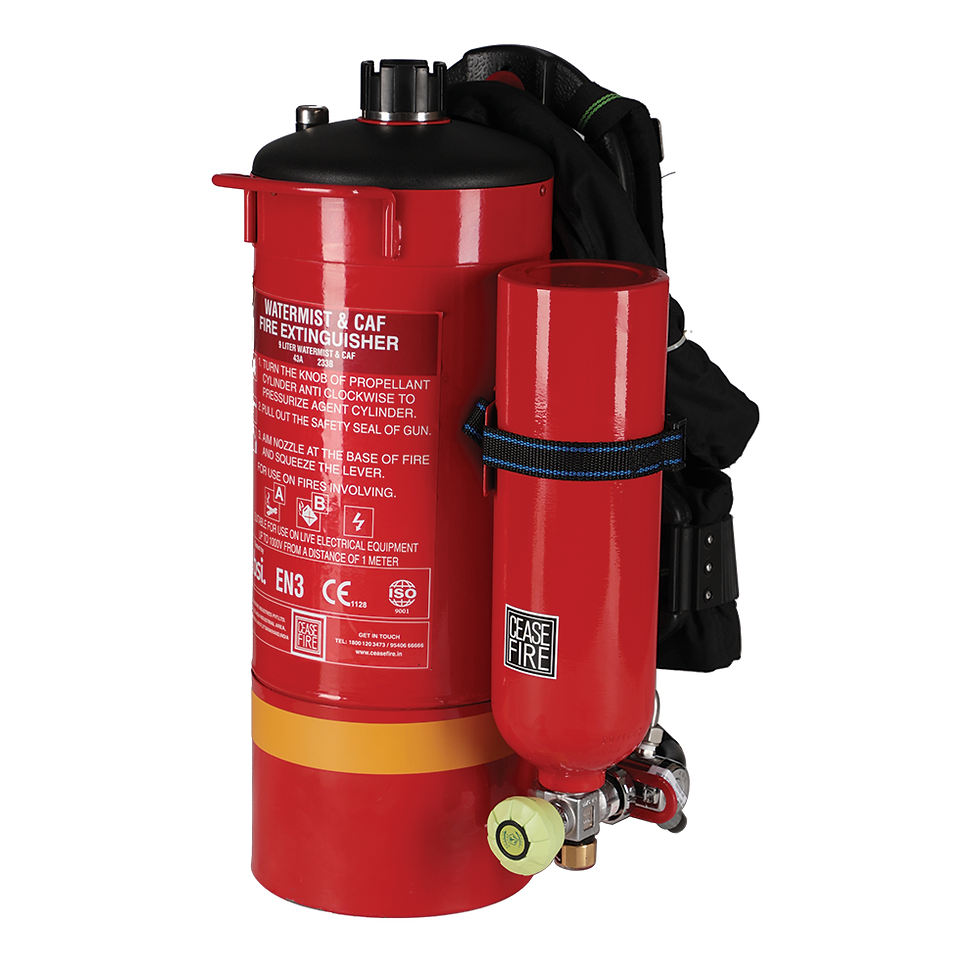

CAFS- Watermist Based Compressed Air Foam System (Low Pressure)
Water is fire’s oldest enemy. The best extinguishing agent known to man. It has a theoretical cooling ability of 2.6 MW per litre per second. But in a real fire situation, such tremendous cooling power can only be achieved with hundreds of litres of water. Because nearly 80% of the water escapes the fire zone without evaporating.
Water’s immense firefighting power can be optimally utilised only by complete vaporisation in a fire environment.
To achieve this, water must be broken down into microscopic molecules that have a surface area coverage many times higher than water. These droplets (about 150 microns in size) must then be delivered to the fire with a kinetic force strong enough to overcome fire’s own convection currents. The result: a powerful, reliable and efficient extinguisher.
Ceasefire now brings together all these features and creates the Watermist Compressed Air Foam System; the best firefighting weapon ever designed. Ceasefire's Watermist Compressed Air Foam System features a high technology gun which breaks water up into miniscule droplets. These droplets are then delivered through micro nozzles with a high degree of dispersion onto the flames, allowing you to fight even very large fires successfully.
With Ceasefire's Watermist Compressed Air Foam System, nearly a 100% of the mist turns into steam and evaporates. This key process stops the fire from spreading and eliminates post fire collateral damage such as flooding.
The mist also acts as the perfect barrier against thermal radiation, giving increased protection to the firefighter. Ceasefire’s Watermist Compressed Air Foam System is also safe to use on Class B fires like petrol and diesel, and electrically started fires - two areas where traditional water applications would either spread the fire, or cause an electrical shock.These systems are avaialble in 9 Ltr. backpack and 50 Ltr. trolley-mounted variant, both in Stain Steel bodies.
FIRE RATINGS:
Size Ratings 9 Ltr 27A, 233B 50 Ltr 21A, IIB -
Application: Works on Class A, B, and electrically started fires.
-
Works on large fire: The gun in Ceasefire's Water Mist Compressed Air Foam System breaks water up into minuscule droplets which are delivered through specialized nozzles dousing fire effectively.
-
Increased protection: The mist also acts as the perfect barrier against thermal radiation
-
Thermal shock-proof: Does not cause cracks to structural elements, steel casings and power line ceramics, due to the nonexistence of thermal shock damage.
-
Safe to use: No hazard to humans or damage to property due to low-pressure water mist of approx. 150 micron size, generated using plain water.
-
Maximum efficiency: The mist's miniscule droplets of water 50 microns cover a larger surface.
-
Controllable discharge: A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
-
EPDM rubber hosepipe: Superior grade EPDM rubber is far more flexible than the normal rubber used in most hosepipes. It is also far less prone to cracks.
-
World-class quality: Comprehensive Helium Tests and Leak Tests also guarantee that the products you buy are manufactured according to the world's most stringent quality standards.
-
5-year warranty: The 5-year warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: BSI tested and CE certified.
-
GLOSSARY CAFS FIRE EXTINGUISHER FOAM MIST 9L SS RED LOW PRESSURE CAFS FIRE EXTINGUISHER FOAM MIST 50L SS RED LOW PRESSURE STORED PRESSURE / CARTRIDGE CARTRIDGE TYPE CARTRIDGE TYPE AGENT AFFF FOAM 6% AFFF FOAM 6% THROW 12 METERS 16 METERS PRODUCT CODE CF-000781 CF-000782 PED YES YES GROSS WEIGHT (APPROX.) 24.80 KG 102.50 KG NET MASS (APPROX.) 9 LTR 50 LTR HEIGHT OF FIRE EXT. (APPROX.) 575 MM 1200 MM DISCHARGE MECHANISM TRIGGER OPERATED GUN TRIGGER OPERATED GUN FIRE RATINGS 27A, 233B 21A,IIB CAN CONSTRUCTION DRAWN ROLLED AND MIG WELDED DRAWN ROLLED AND MIG WELDED VALVE / CAP CONSTRUCTION MACHINING MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER WARRANTY IN YEARS 5 5 WORKING PRESSURE 8 BAR 8 BAR DIA. OF SHELL (OD) 204 MM 300 MM OPERATING TEMPERATURE 5° C TO +55° C 5° C TO +55° C HYDROSTATIC TEST PRESSURE 35 BAR 30 BAR BODY THICKNESS (APPROX) 1.5 MM 2 MM
